Highlights

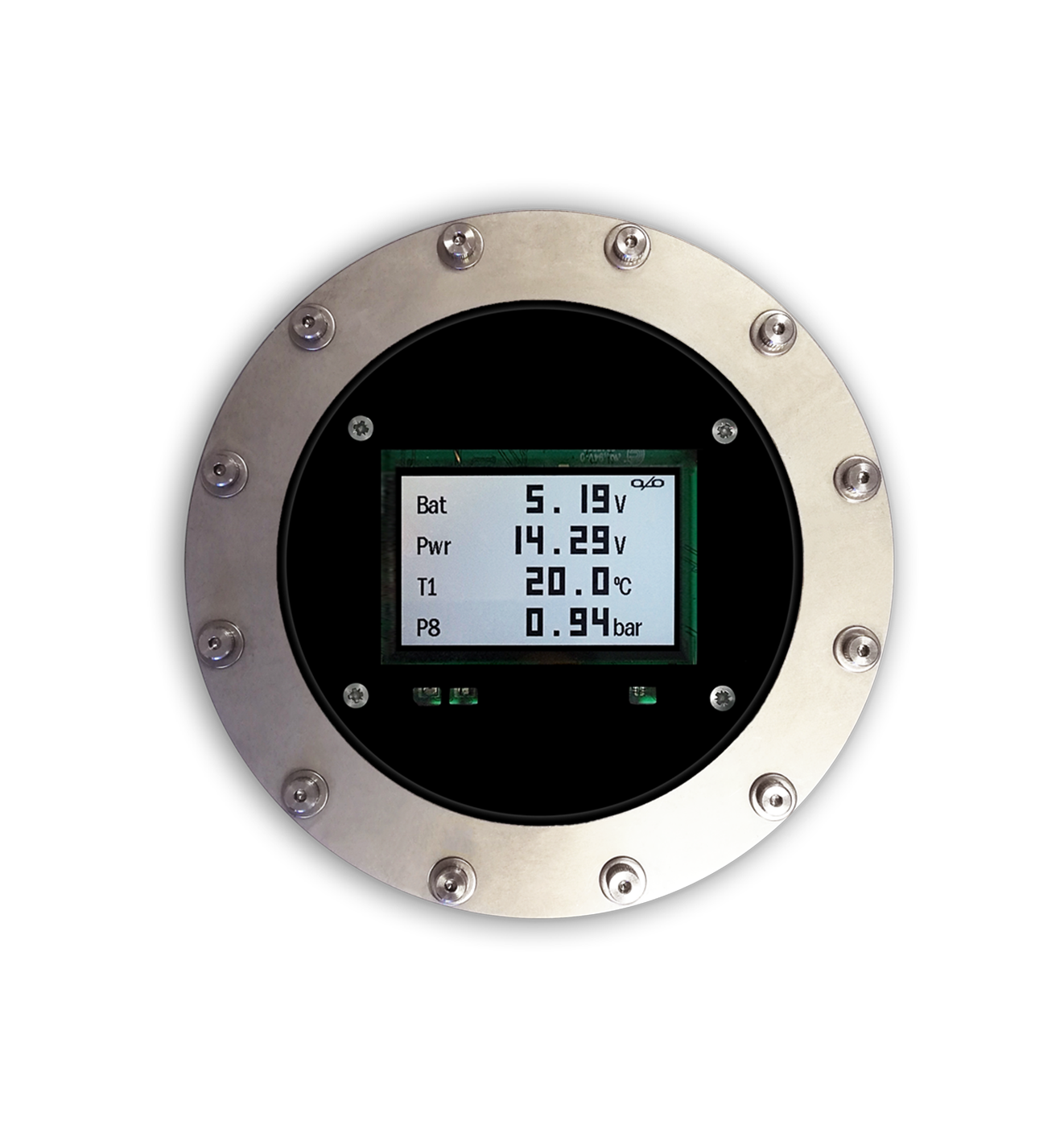

- Compact subsea LCD display
- 4,000 m depth rating
- Compatibility with serial and NMEA output instruments
- 16-parameter monitoring capacity
- 4-screen display with 1-4 parameters per screen
- Preset display profiles for quick setup changes
- Optional 30-value history or averaged value display for each parameter
- Fully configurable units, graphs, and parameter positioning at point of order
- Low power consumption for extended operation
- Magnetic and light activation switches
Specifications
Explore the advanced capabilities of our instruments and systems through their technical specifications.
| MODEL NAME | COMPATIBILITY |
|---|---|
| AQUAdisp™ 1000 AQ | Compatible with Aquatec instruments |
| AQUAdisp™ 1000 NMEA | Compatible with a single NMEA instrument |
| AQUAdisp™ 1000 NMEA ADVANCED | Compatible with multiple NMEA instruments or when various profiles are needed |
| AQUAdisp™ 1000 SERIAL | Compatible with a single serial instrument |
| Input | RS232/RS485 |
|---|---|
| Power | 4.2 to 30 VDC |
| Battery | No internal power - external batteries available on request |
| Software | AQUAtalk™ for Windows (for configuration) |
| Wake Up | Magnetic or light activation, or option to leave on |

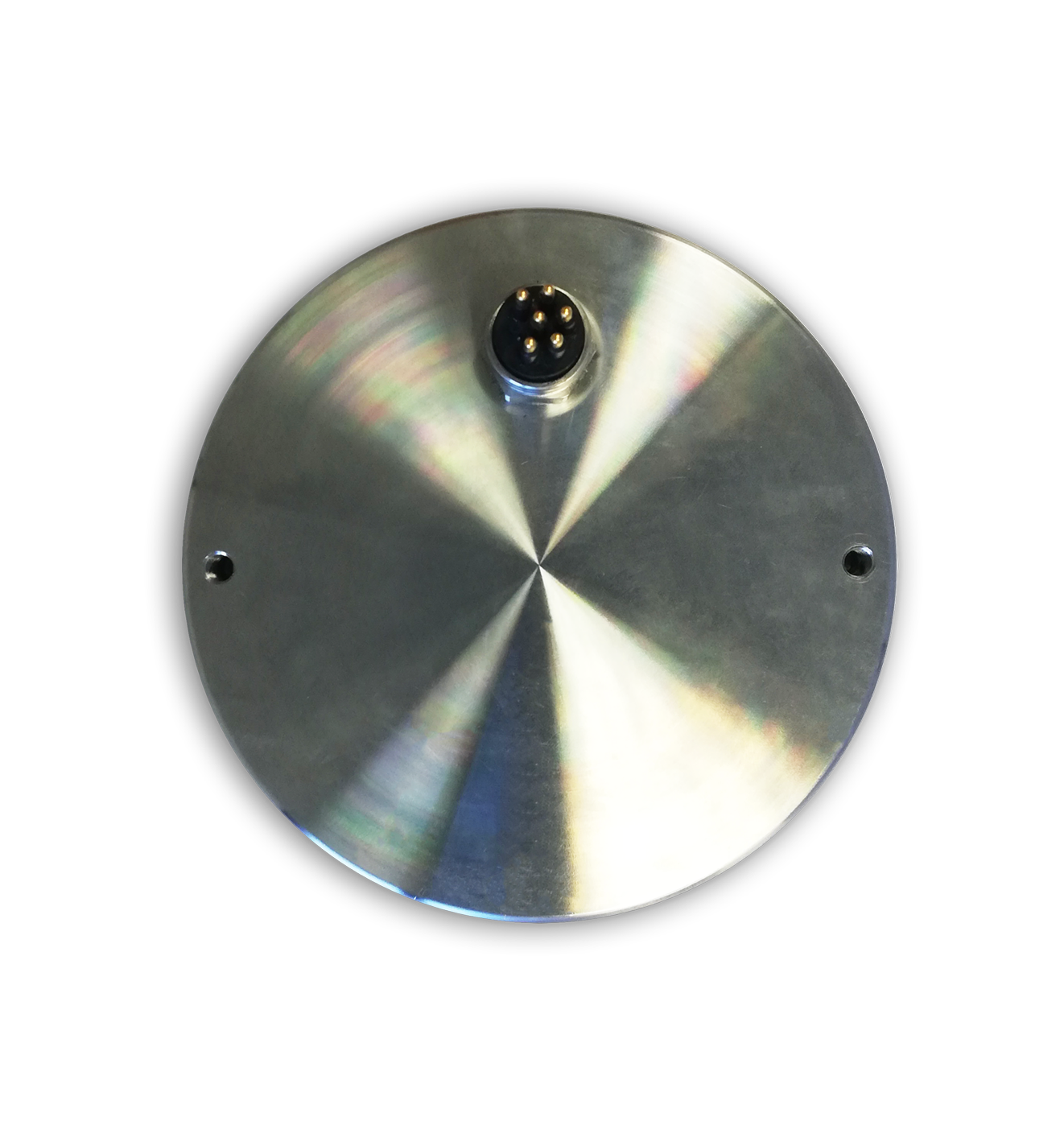

| Connector | MCBH6M/MCBH5M |
| Connector position | At rear or on the side |
| Depth rating | 4,000 m |
| Mounting | Mounting points provided - 2 x M6 F threaded holes |
| Dimensions | 135 mm diameter, 50 mm depth (excluding connector) |
| Weight | 2.75 kg in air |
| Material | Stainless Steel 316 with Perspex window |
| Compatibility | NMEA/Serial Output Instruments HYDROlog® 9 Series, HYDROlog® 3000, AQUAlogger® 310 |
| Parameters - maximum | 16 |
|---|---|
| Numerical screen display options | 1 - 4 parameters per screen (max 4 screens) Position of numerical values - configurable at point of order Units and parameter labels - fully configurable at point of order |
| Graphical screen display options | 1 parameter per graph Y axis autoscaling on/off Last 33 values shown or data averaged to 1 bar per second / per minute / per hour |
| Data update rate | Depends on NMEA rate and display refresh rate configured - up to 1Hz |
| Screen rotation | None or 180 degrees |
| Contrast | Black on white (default) or white on black |
